Payment Orchestration for iGaming: Architecture, Card Data Scope, and Instant Rails in 2026

Payment orchestration for the iGaming industry is a control layer between the player wallet and multiple PSPs. It decides which provider handles each deposit and each cash-out, then records the outcome against the ledger. The layer holds selection rules, retry sequences, tokenized credentials, and reconciliation jobs. Under card-data rules mandatory in full since March 31, 2025, its placement also sets audit scope.

Most operators meet this problem at the second market or the second PSP. Provider logic then sits inside application code, and every new connection widens the regression surface. NuxGame handles that boundary at platform level: the NuxGame platform exposes cashier rules, wallet behavior, and provider connections as operator-side configuration rather than development tickets.

Key Takeaways

1. 01

   Orchestration owns provider-selection rules; a single connection owns nothing beyond its own transport — that split decides who changes logic without a release.

2. 02

   Keeping card data off operator infrastructure holds the assessment at SAQ A instead of SAQ A-EP.

3. 03

   RTP and FedNow both cap single transfers at $10 million and use ISO 20022 messaging, making rail choice a configuration decision.

4. 04

   Redundancy value comes from measured recovery time, not from the number of payment service providers under contract.

What Payment Orchestration Changes Inside an iGaming Payment Stack

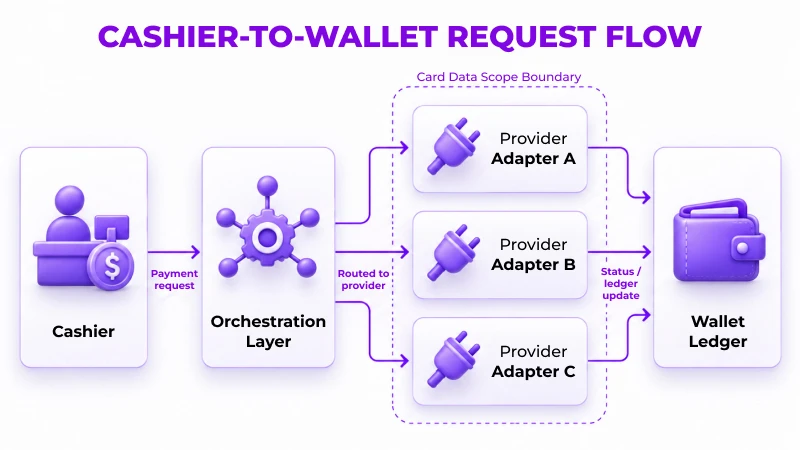

The layer replaces point-to-point integrations with one internal contract. Instead of the cashier calling four PSP endpoints for deposits and withdrawals, it calls one and receives a normalized response. Provider differences — capture semantics, refund windows, webhook formats, currency handling — get absorbed by adapters. The cashier stops caring which provider answered.

That normalization moves four things out of application code and into configuration. Each has a different owner inside an operator team, which is why the split matters more than the software.

Moved out of code	Now owned by
Provider selection rules	Payments or growth team
Retry and fallback sequences	Payment operations
Currency and jurisdiction filters	Compliance
Credential storage and rotation	Security

Orchestration, PSP, and Acquirer: Where the Boundaries Sit

These terms get used interchangeably across the iGaming industry, and the confusion has a cost. A team buying one provider connection, expecting control over selection logic, finds those rules sitting in a dashboard it does not own. The distinction is about which party holds the decision, not about feature lists.

Component	Decision it holds	What breaks it
Acquirer / issuer	Authorization of the card transaction	Risk review, BIN rules
PSP	Connection to one set of rails	Outage, volume cap, offboarding
Payment gateway	Transport and tokenization for its own connection	Provider-side degradation
Orchestration layer	Which provider receives the attempt, and the next attempt	Misconfigured rules, stale performance data
PAM wallet	Player balance, bonus state, entitlement	Ledger drift, unhandled pending states

Vendor naming rarely follows this map. Some payment systems sold as orchestration supply one connection with a provider menu behind it. The quickest way to separate the two is to ask for attempt-level data: every retry, decline code, and provider response, exported in a format iGaming operations can query. A menu rarely produces it.

Payment Routing Rules as Operator-Owned Configuration

A rule reads transaction context before it selects a destination. The useful inputs are narrower than most teams assume, and adding more rarely improves the decision. Rules that depend on twenty variables become untestable, and untestable rules get frozen after the first incident.

Practical inputs for a first ruleset:

• Jurisdiction and state, where licensing restricts eligible providers
• Card BIN and issuing bank, which carry most of the decline signal
• Transaction value band, separating small deposits from high-risk ones
• Player verification tier, gating certain rails until checks complete
• Live provider health, expressed as a rolling success rate

Ownership is the second half of the question. When rules sit in configuration, an analyst adjusts them on a Tuesday afternoon; when they sit in code, the same change waits for a release window. Smart routing earns its name only where the operator holds both the rules and the payment performance data behind them. Tuning against live results is covered in the NuxGame guide to payment approval rate optimization.

Instant Rails and Settlement Timing for US Operators

Deposits get the attention, but money leaving the platform decides retention. US instant rails changed materially over the past eighteen months. The Clearing House lifted the RTP per-transaction ceiling to $10 million in February 2025, and the Federal Reserve matched it with a FedNow transaction limit increase effective November 2025. Both networks carry ISO 20022 messaging and provide real-time settlement.

Rail choice now sits inside the configuration table rather than in a treasury spreadsheet. Operators supporting multiple payment rails select a disbursement path per withdrawal, using amount, recipient bank participation, and review status. Coverage differs: RTP reaches most large-bank accounts, while FedNow extends to roughly 1,400 smaller institutions and credit unions. Rail availability is one input to the wider set of online casino payment methods an operator already supports.

• Under review or first withdrawal: hold in queue, no rail assigned
• Verified, low value, recipient bank on either network: instant rail
• High value to a participating large bank: RTP
• Recipient bank absent from both networks: ACH, with a stated timeline in the cashier

Card Data Scope Boundaries in an Orchestrated Setup

Topology decides assessment burden. If the orchestration layer terminates card data inside operator infrastructure, the environment falls under SAQ A-EP and inherits a far heavier control set. If tokenization happens at vendor-hosted payment fields and the operator handles only tokens, SAQ A applies. The architectural difference is one hop; the compliance difference is substantial.

Version discipline matters here too. PCI DSS v4.0.1 is the only active version of the standard, and the previously future-dated requirements stopped being optional on March 31, 2025. Two land directly on orchestrated cashiers: payment page scripts require authorization and integrity checking, and multi-factor authentication applies to every account touching the cardholder data environment.

Scope checkpoints worth confirming before an audit:

• Where the card number first appears in the request path
• Which domain serves the payment page scripts
• Whether vendor attestations cover the adapter layer as well as the provider
• How credentials rotate across provider accounts

Ledger Integrity and Player Fund Reconciliation

iGaming platforms differ from general e-commerce here because the wallet, not the cashier, is the system of record. One deposit may generate three provider records across two PSPs, and only one credits the wallet. Without idempotency keys, a retried webhook double-credits a player. Without a canonical transaction ID spanning attempts, support cannot explain the balance.

Regulators treat this as a funds question, not an engineering one. Malta requires that player funds stay segregated and separately identifiable at all times, with pooled accounts permitted only where records establish each entitlement. Multiple settlement accounts across several providers satisfy that test through ledger design, not through account count.

Break Detection Between Provider and Wallet

Reconciliation runs against three sources: settlement files, orchestration attempt logs, and wallet ledger entries. Any transaction present in one and missing from another is a break. Alert on unmatched items by age rather than volume, because a few stale breaks signal a systemic mapping error while many fresh ones reflect normal settlement lag. Chargebacks enter the same workflow weeks later, and the original attempt record must still be addressable.

Failure Domains and Recovery Targets

Contracting three providers proves nothing on its own. What matters is how the layer detects degradation and how quickly it stops sending traffic to a failing path. Health checks that only test endpoint reachability miss the common case, where a provider responds promptly and declines everything. Silent declines are among the harder payment challenges in iGaming to catch after the fact. Real-time success-rate monitoring surfaces them; uptime monitoring does not.

Infrastructure targets belong in the same conversation. The AWS multi-AZ deployment guidance treats managed database failover as an automatic 30–60 second operation, which sets a realistic floor for recovery of the payment infrastructure itself. Provider failover completes faster, since it involves a decision rather than a state transfer.

Failure mode	Detection signal	Contained by
Provider outage	Timeout rate above threshold	Automatic provider removal
Silent decline spike	Approval trend divergence by provider	Weighted rule adjustment
MID risk flag	Decline codes clustering by MID	Volume redistribution
Orchestration node loss	Health check failure	Multi-AZ deployment
Webhook backlog	Queue depth growth	Replay with idempotency keys

Build, Buy, or Platform-Native

Three options exist, and cost separates them more than capability does. Building in-house suits companies large enough to integrate providers directly and maintain those connections. Buying a standalone payment orchestration platform adds a vendor and a second underwriting process, which carries real weight in the US market. Platform-native orchestration removes the integration entirely, at the cost of vendor-defined boundaries.

The threshold question is simpler than the vendor comparison. Operators running one provider in one market gain little. The economics change at the second PSP, at entry into new markets, or at the first regulated launch requiring jurisdiction-specific rules. NuxGame supports the platform-native option through pre-integrated provider connections, operator-configurable cashier rules, wallet logic, and back-office reconciliation tools, which reduces the number of separate vendor relationships iGaming businesses maintain.

Technical Snapshot

Implementation requirements for an orchestrated payment process:

Area	Requirement
Interface	Single internal payment API with normalized status codes across adapters
Idempotency	Canonical transaction ID persisting across every attempt and retry
Webhooks	Signature validation, replay tolerance, ordered processing per transaction
Selection rules	Versioned rulesets with rollback and a staging environment for rule changes
Card data	Tokenization at vendor-hosted fields; no PAN in operator infrastructure
Ledger	Double-entry wallet postings with per-player entitlement in pooled accounts
Monitoring	Rolling success rate per provider, per BIN, per jurisdiction; payout queue age
Recovery	Documented RTO for node loss and for provider failover, tested quarterly
Reporting	Attempt-level export for regulator queries and settlement disputes

Where This Leaves an Operator Decision

Payment orchestration for iGaming is an architectural commitment, not a procurement line. It determines who changes selection rules, how fast a failing provider gets isolated, where card data lands for audit purposes, and whether the ledger survives a retried webhook. Those four properties are worth confirming before comparing commercial terms.

The decision point arrives earlier than most roadmaps assume. Teams that settle it during a quiet quarter spend the following year refining a payment strategy; teams that defer it rebuild the cashier under load, with live traffic on it.
